Designed by Kevin Quan Studios and inspired by the undying spirit of the Pacific Northwest and the cascading beauty of the Rogue River, this bike offers versatility like none other. With increased tire clearance up to 35mm* compared to our previous road bike, the Rogue is set to be your go-to for race day and adventures alike. From the twists and turns of mountain roads to the raw challenge of backroad gravel, The Rogue adapts effortlessly. Its prowess isn’t just limited to natural terrains; it's also a beacon of efficiency in city commutes. The Rogue promises a ride that's both dynamic and dependable.
*Tire clearance for wheels available through A2 can extend to 35mm. Other wheelsets may offer more or less clearance.
5nm torque wrench included in your order for bike setup. We highly recommend taking your bike to your local bike shop to finish setup especially if you have ordered Di2 or need any assistance in the final steps of setup. For more information on how to set up your Rogue, head to our Rogue setup page.
Designed by Kevin Quan Studios and inspired by the undying spirit of the Pacific Northwest and the cascading beauty of the Rogue River, this bike offers versatility like none other. With increased tire clearance up to 35mm* compared to our previous road bike, the Rogue is set to be your go-to for race day and adventures alike. From the twists and turns of mountain roads to the raw challenge of backroad gravel, The Rogue adapts effortlessly. Its prowess isn’t just limited to natural terrains; it's also a beacon of efficiency in city commutes. The Rogue promises a ride that's both dynamic and dependable.
*Tire clearance for wheels available through A2 can extend to 35mm. Other wheelsets may offer more or less clearance.
5nm torque wrench included in your order for bike setup. We highly recommend taking your bike to your local bike shop to finish setup especially if you have ordered Di2 or need any assistance in the final steps of setup. For more information on how to set up your Rogue, head to our Rogue setup page.
Compare All Rogue Builds
 Rogue - Shimano 105From $2,699.00 |  Rogue - SRAM RED AXSFrom $7,900.00 |  Rogue - SRAM Rival AXSFrom $3,999.00 | |
|---|---|---|---|
| Groupset | |||
Weight |
|
|
—
|
Wheelset |
|
—
|
|
Stem |
|
|
|
Handlebars |
|
|
|
Electronic Shifting This indicates whether your preferred groupset comes with electronic or mechanical shifting.
|
|
|
|
Shifters |
|
|
|
Brake Rotors |
|
|
|
Brakes Refers to the type of brake, and product name.
|
|
|
|
Front Derailleur |
|
|
|
Rear Derailleur |
|
|
|
Crank |
|
|
|
Crank Tooth Count |
|
|
|
Cassette |
|
|
|
Bottom Bracket |
|
|
|
Saddle |
|
|
|
Click the Icons to Learn the Rogue 105 Specs
Shimano 105 Cassette 11-30T
Shimano 105 FC-RS520 50-34

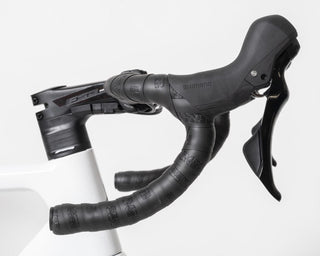

Shimano Dura Ace Shifters

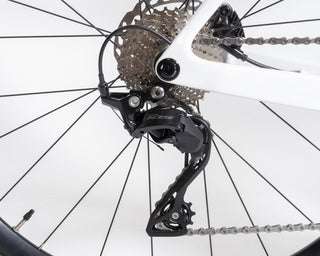

Shimano 105 R-7000 RD
Shimano 105 Hydraulic Brakes
-
Rogue All-Road Geometry Guide
All measurements are in mm unless specified.
Bike
Small
Medium
Large
XL
Seat Tube (A)
462 482 510 528 Seat Tube Angle (B)
74° 73° 73° 72° Head Tube Length (C)
115 130 145 160 Head Angle (D)
72 72 73 73 Effective Top Tube (E)
528 540 552 567 Bottom Bracket Drop (F)
41 41 41 41 Chainstay Length (G)
410 410 410 410 Stack (H)
521 535 550 567 Reach (I)
378 381 386 390 Bike
Small
Medium
Large
XL
Stem
100 100 110 110 Crank
170 170 172.5 172.5
Pay $150 today - Good towards final price
Demo
Pay
Rogue All-Road Geometry Guide
All measurements are in mm unless specified.
Bike |
Small |
Medium |
Large |
XL |
Seat Tube (A) |
462 | 482 | 510 | 528 |
Seat Tube Angle (B) |
74° | 73° | 73° | 72° |
Head Tube Length (C) |
115 | 130 | 145 | 160 |
Head Angle (D) |
72 | 72 | 73 | 73 |
Effective Top Tube (E) |
528 | 540 | 552 | 567 |
Bottom Bracket Drop (F) |
41 | 41 | 41 | 41 |
Chainstay Length (G) |
410 | 410 | 410 | 410 |
Stack (H) |
521 | 535 | 550 | 567 |
Reach (I) |
378 | 381 | 386 | 390 |
Bike |
Small |
Medium |
Large |
XL |
Stem |
100 | 100 | 110 | 110 |
Crank |
170 | 170 | 172.5 | 172.5 |
Rogue Shimano 105 Spec Guide
*Components subject to change due to supplier availability.

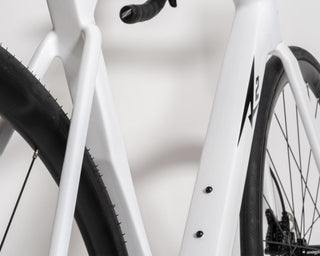

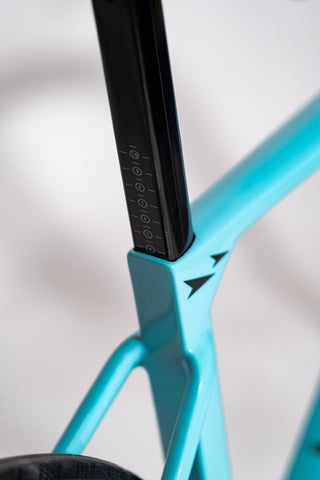

| Frameset | A2 Rogue T-700 UD carbon fiber, flat-mount disc, SRAM UDH |
| Wheelset | Vision Team 30s, Tubeless Thru Axle |
| Rear Thru Axle | Robert Axle Project 12x142, 1.0mm thread |
| Front Thru Axle | Robert Axle Project 12x100, 1.5mm thread |

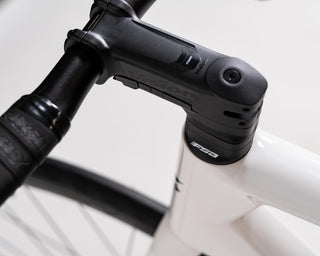

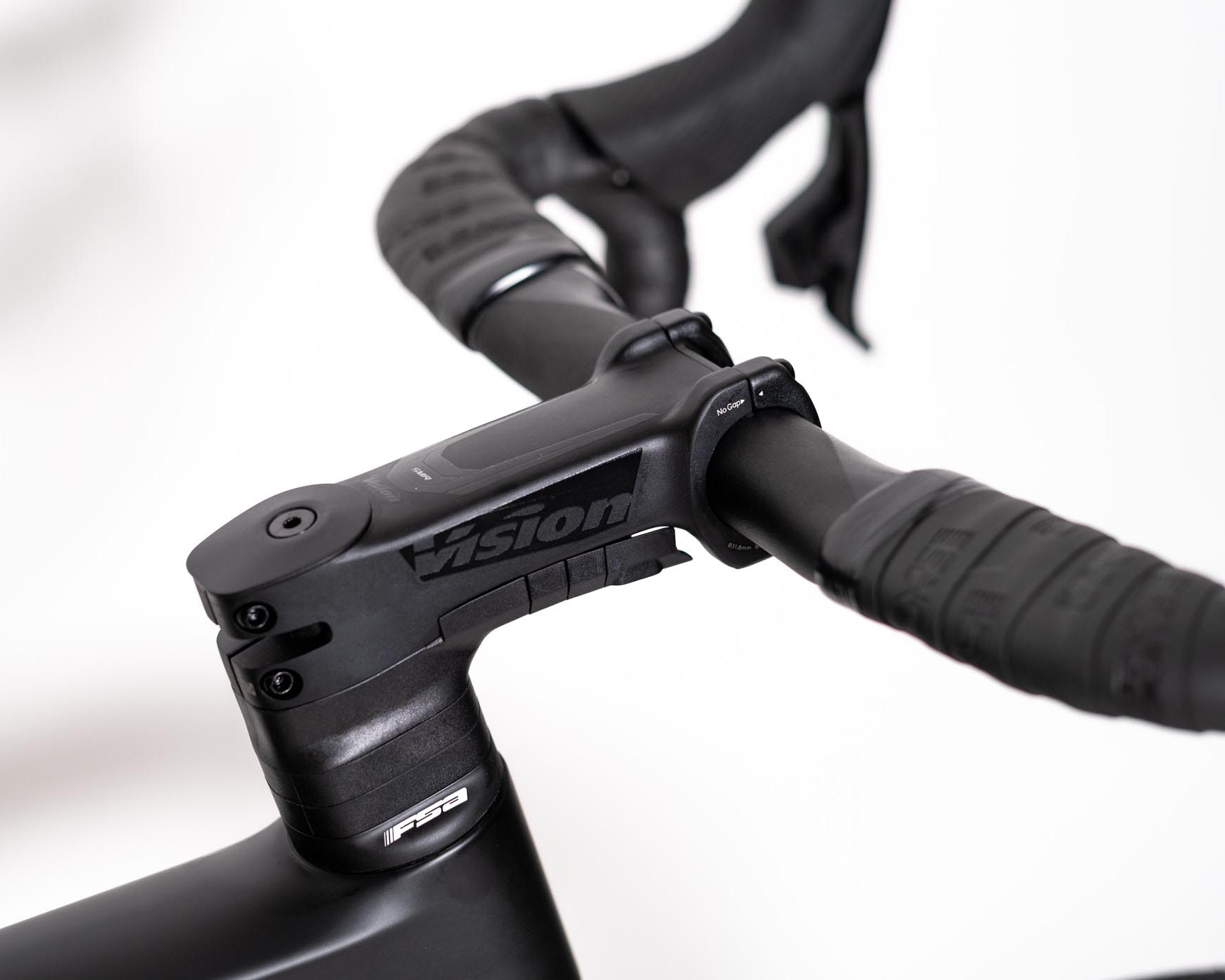

| Stem |
Vision SMR Alloy |
| Handlebars | Vision Gossamer Alloy |
| Shifters | Shimano 105 Mechanical |

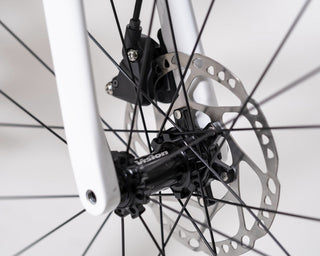

| Brake Rotors | Shimano RT-64, 160mm |
| Brakes | Shimano 105 Hydraulic |
| Front Derailleur | Shimano 105 R-7100 Mechanical |

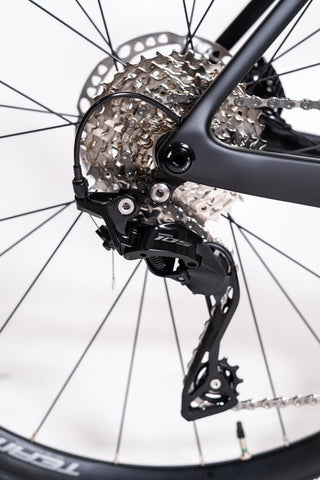

| Rear Derailleur | Shimano 105 R-7100 12 Speed Mechanical |

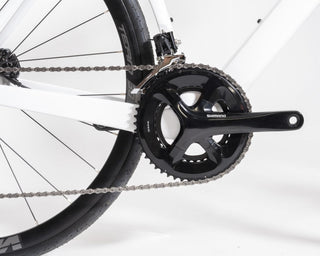

| Cranks | Shimano R-520 |
| Cassette | Shimano 105 11-36 |
| Chain | Shimano 105 12-Speed |
| Bottom Bracket | Shimano BB86 |
| Tires | Vittoria Zaffiro 30c |
| Saddle | WTB Rocket V Steel |
Bike Assembly
Arrives 92% Built
Your bike shows up 92% assembled, complete with the tools and step-by-step instructions—no mechanical know-how required.

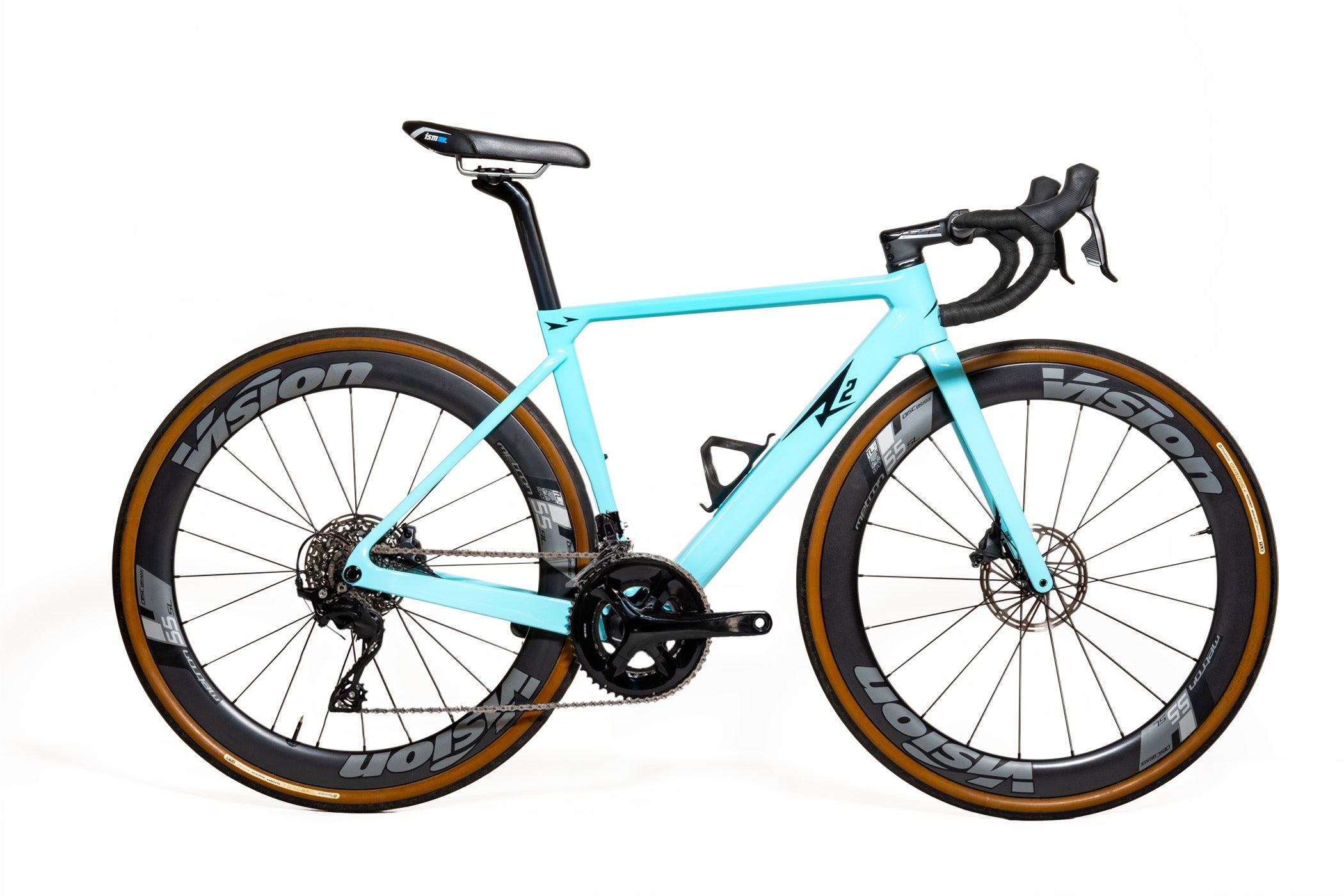

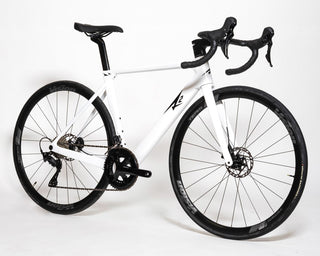

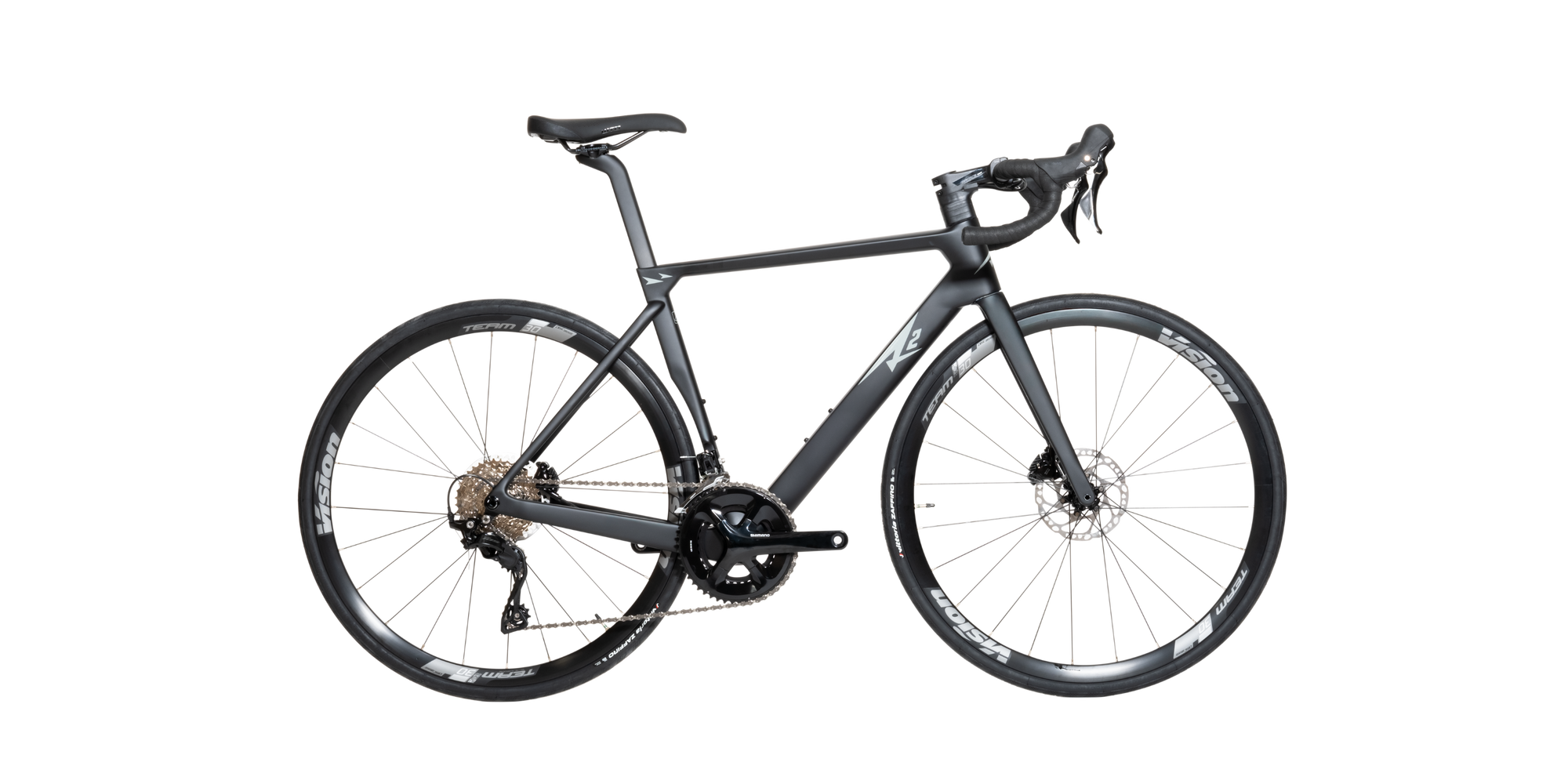

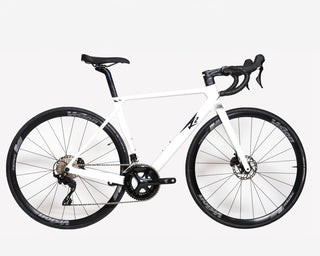

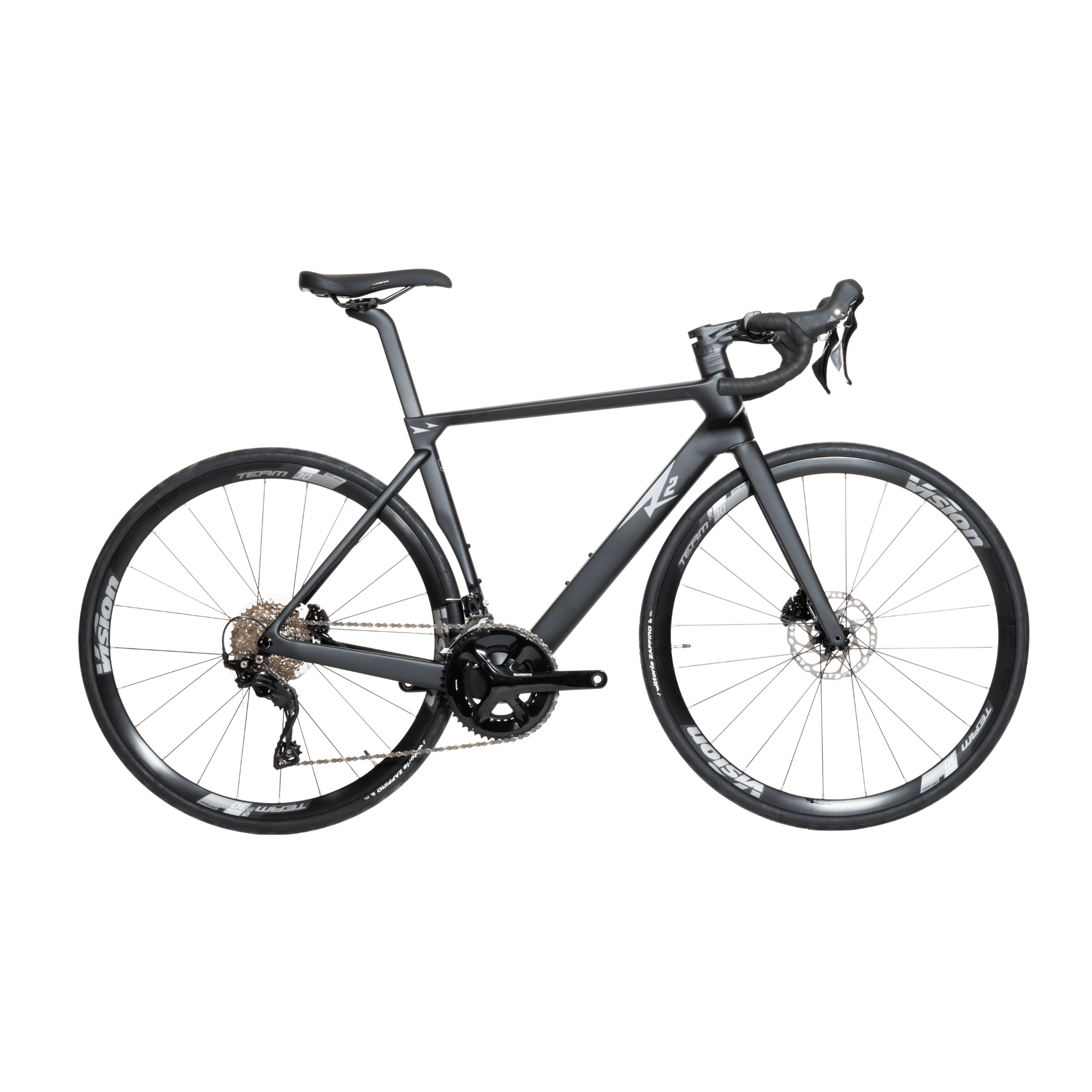

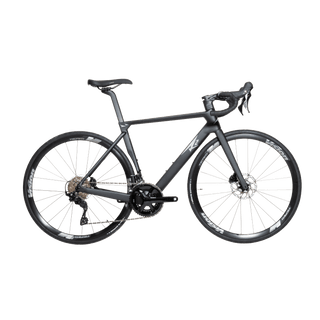

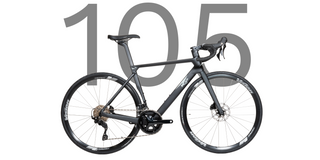

Rogue 105
Simple, reliable, and built for exploration. The Rogue 105 is our most popular all-road build, equipped with Shimano’s trusted 105 groupset. Perfect for riders seeking dependability on climbs, descents, and gravel stretches while keeping adventure within reach.

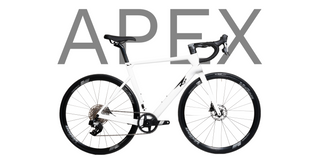

Rogue Apex AXS 1x
Modern, wireless, and built for adventure. The Rogue Apex AXS 1x features SRAM’s intuitive wireless shifting, giving you smooth, precise gear changes with just the tap of a button. With a wide-range cassette and simplified 1x setup, it’s perfect for riders who want performance and versatility on every road, paved or unpaved.

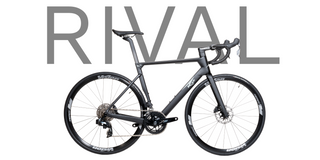

Rogue Rival AXS
A step up from Apex, the Rogue Rival AXS delivers precise electronic shifting from SRAM. With a streamlined 2x drivetrain and wide gear range, it’s built to handle long climbs, fast descents, and everything in between, making every ride smoother and more efficient.

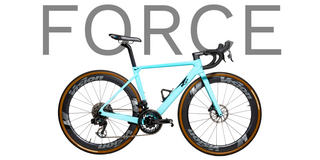

Rogue Force AXS
Many riders choose the Rogue Force AXS for its high-end performance without the premium price tag of Red. This build strikes the perfect balance between efficiency and refinement, making it a top choice for cyclists who want to climb stronger, descend faster, and take on long rides with confidence.

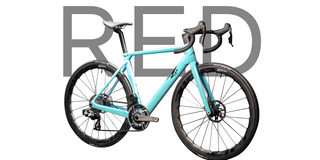

Rogue Red AXS
The Rogue Red AXS represents the peak of all-road performance. Outfitted with SRAM’s lightest and most precise Red AXS groupset and paired with Zipp 353 NSW carbon wheels, this build is for riders chasing the ultimate in speed, responsiveness, and climbing efficiency. Designed for those who demand nothing less than excellence on every ride.
